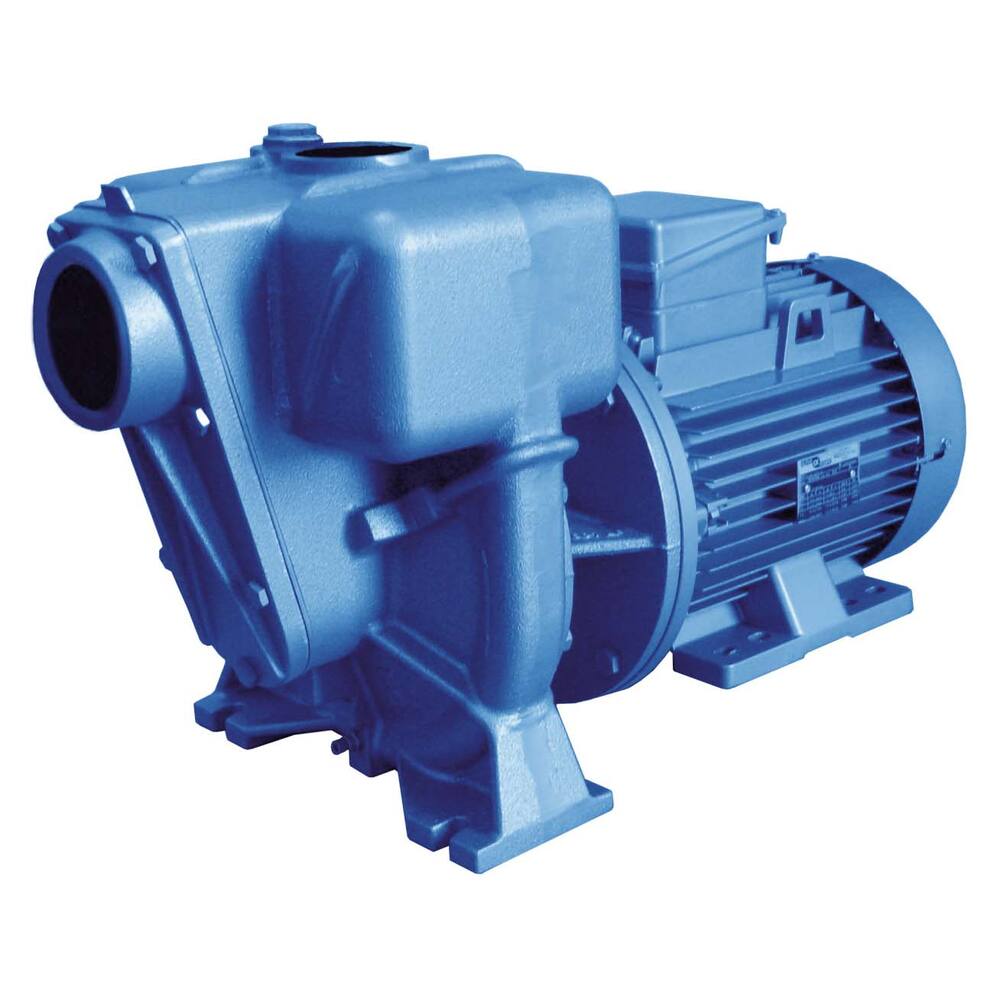

Alpha 0RA-A15-T 15 HP 400V

Deck wash and lens pumps for commercial shipping, large pleasure craft, and coastal vessels, also well suited for irrigation, watering, drainage, and as a cooling medium pump for industrial use.

Type: 0RA-A15-T
Colour: blue
Pump type: self-priming centrifugal pump (1" model limited self-priming +/- 2 metres)
Impeller type: open impeller
Motor type: 400-volt squirrel-cage motor
Fuse: only built-in thermal protection on 230-volt motors
Shaft seal: ceramic-on-carbon mechanical seal with neoprene or Viton elastomers (for gas oil)
Impeller material: cast iron
Pump casing material: cast iron
Pump shaft material: stainless steel AISI 420
Liquids: contaminated water, seawater, etc., maximum temperature 90°C
Insulation class: IP55
At 40 metres: 58,200 litres per hour
At 45 metres: 49,500 litres per hour
At 50 metres: 43,500 litres per hour
At 55 metres: 22,500 litres per hour
At 60 metres: 6,000 litres per hour
Connections: 3" female thread
Dimensions: l x w x h = 840 x 350 x 421 mm
Weight: 145 kg
Amperage: 13.3 A
Shaft power: 11.0 kW, 15.0 hp, 2800 rpm
