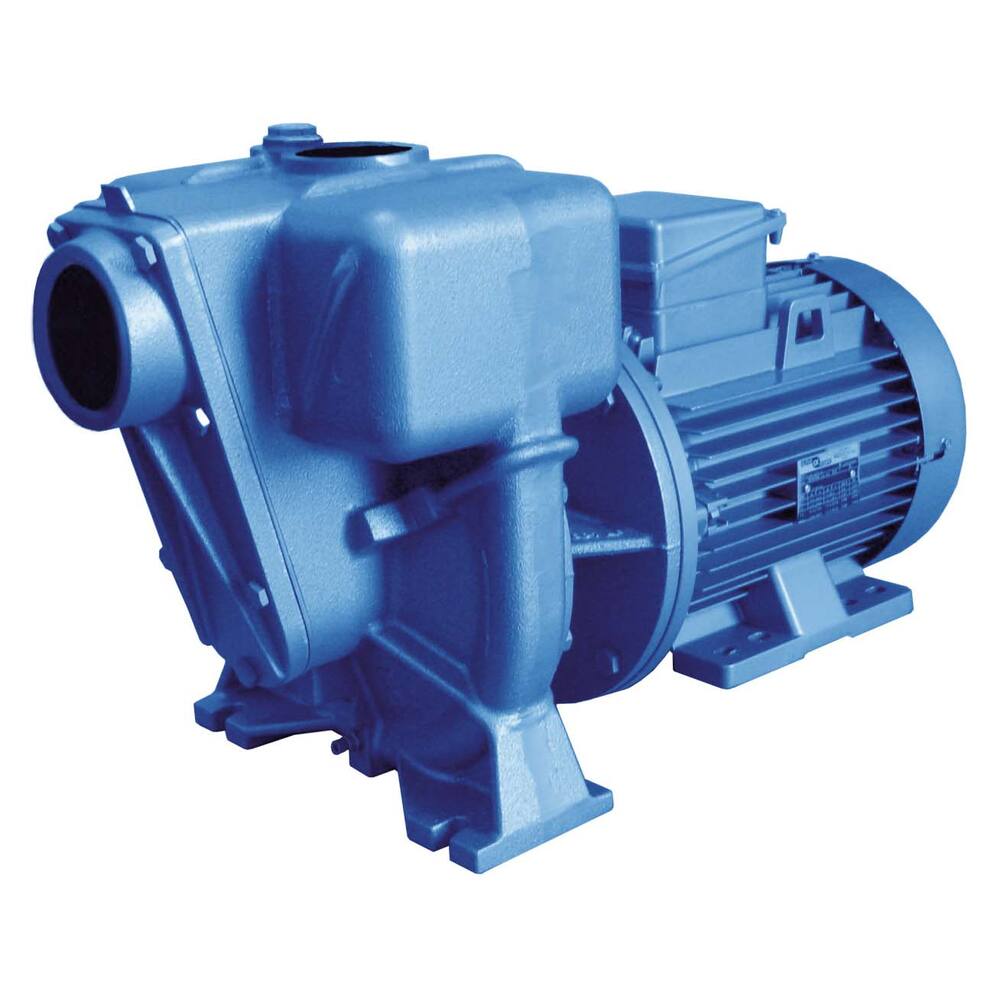

Alpha 0RA-A25-T 25 HP 400V

Deck wash and lens pumps for commercial shipping, large pleasure craft, and coastal vessels are also well suited for irrigation, watering, drainage, and as cooling medium pumps for industrial use.

Type: 0RA-A25-T
Color: blue
Pump type: self-priming centrifugal pump (1" model limited self-priming +/- 2 meters)
Impeller type: open impeller
Motor type: single-phase motor at 400 volts
Fuse: only built-in thermal protection for the 230-volt motors
Shaft seal: mechanical seal of ceramic on carbon with elastomers of neoprene or viton (for gas oil)
Impeller material: cast iron
Pump casing material: cast iron
Pump shaft material: stainless steel AISI 420
Liquids: contaminated water, seawater, etc. maximum temperature 90°C
Insulation class: IP55
At 56 meters: 48,000 liters per hour
At 60 meters: 43,800 liters per hour
At 65 meters: 36,000 liters per hour
At 70 meters: 24,000 liters per hour
At 75 meters: 9,000 liters per hour
Connections: 3" female thread
Dimensions: l x w x h = 930 x 350 x 421 mm
Weight: 179 kg
Amperage: 20.7 A
Shaft power: 18.5 kW, 25.0 hp, 2800 rpm
