HOAC

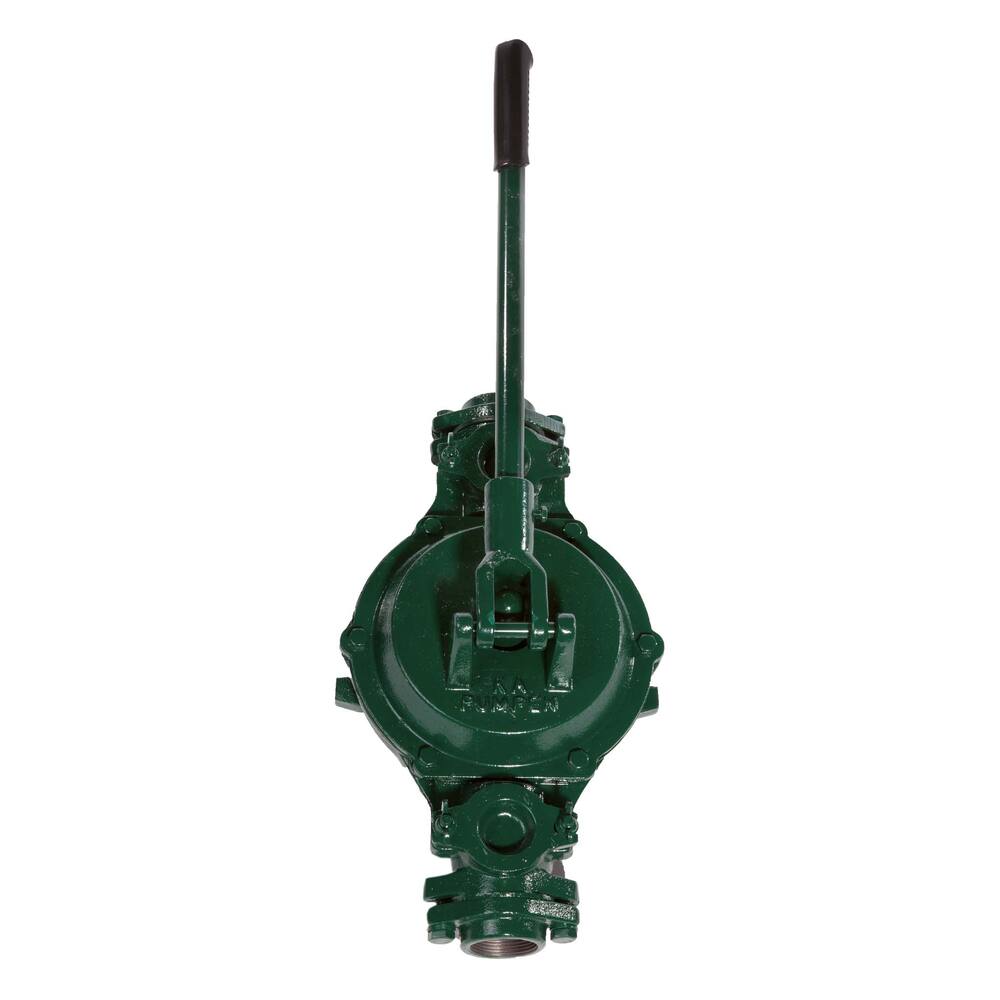

Hand diaphragm pump 1.1/2" Beyer type
Item no. 96.16.200
- In stock
- Free pickup in Harlingen
€472,80
Total
Delivery
Pick up in HarlingenFree
Parcel via DPD (up to 30 kg)€ 8,95
Pallet via Koopman (over 30 kg)€ 75,00
Request a volume price or quote
For transferring clean or contaminated oil-containing liquids in marine, industrial and domestic applications.
Colour: green
Pump type: self-priming manual diaphragm pump
Impeller type: diaphragm
Rotation: horizontal movement
Shaft seal: N/A
Diaphragm material: oil-resistant rubber
Valve material: rubber with steel core
Pump housing material: cast iron
Pump shaft material: N/A
Liquids: clean and dirty water, seawater
Capacity: 45 litres per minute (at 50 strokes per minute)
Overall length: 375 mm between flanges
Weight: 12.5 kg
Reducing rings are available for smaller connections.
Item: 86.24.119 to 86.24.123
| Brand | HOAC |
|---|---|
| Item number | 96.16.200 |
| Diameter | |
| Breaking strength | |
| Weight per 100 m | |
| IMPA code | |
| Suction lift | 6.0 m |
| Discharge pipe diameter | 1.1/2" |
| Suction pipe diameter | 1.1/2" |
| Pump type | Diaphragm pump |
| Medium | Lubricating oil |
| Particle size | 25 mm |
| Max. delivery head | 12.0 m |
| Free delivery (L/hr) | 2700 |
| Capacity at 5 meters (L/hr) | 0 |
- Pick up in Harlingen · freeKoningsweg 9. You will receive an email when it is ready.
- Parcel via DPD · € 8.95For shipments up to 30 kg.
- Pallet via Koopman · € 75.00Over 30 kg, such as full reels.
You choose the shipping method at checkout.
