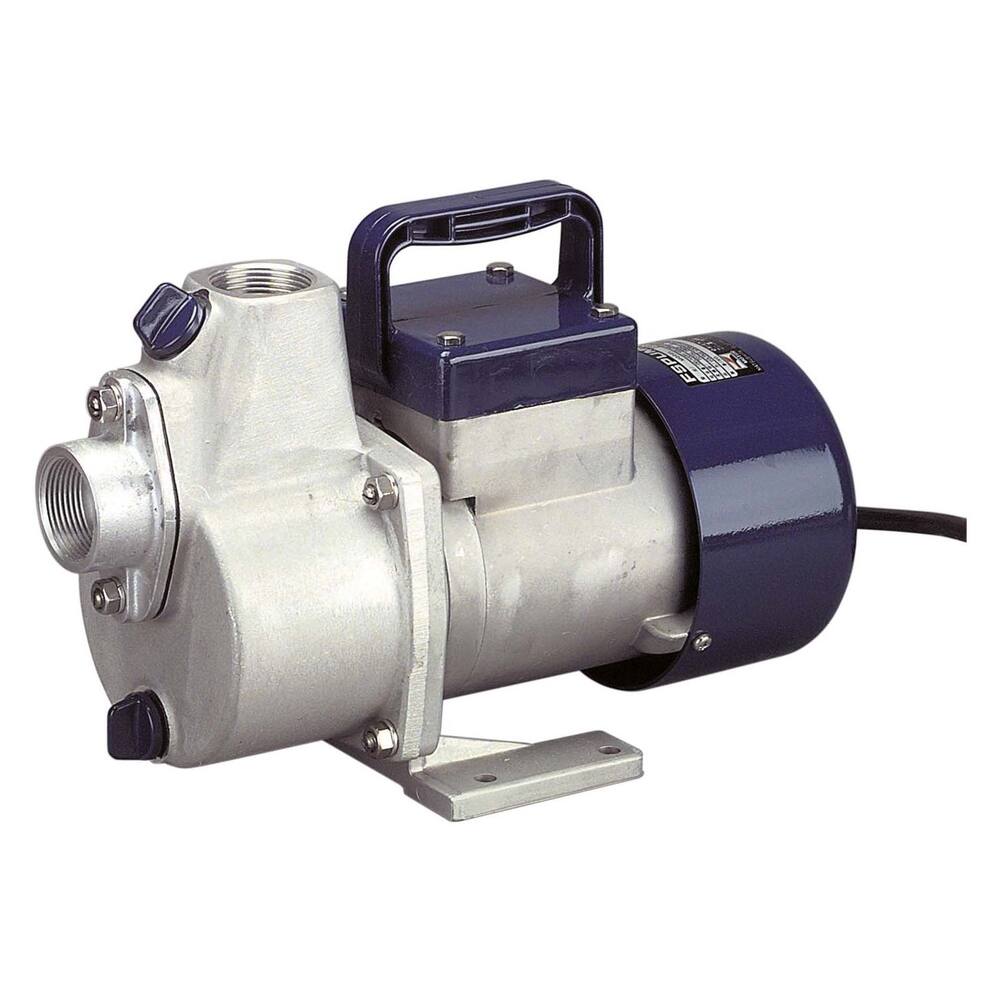

Koshin FS-3224S 24V
- In stock
- Free pickup in Harlingen
Request a volume price or quote
Professional self-priming pump for commercial vessels, large pleasure craft, construction, transport, mobile cranes, etc.
Type: FS
Color: blue with aluminum
Pump type: self-priming centrifugal pump
Impeller type: open impeller
Motor type: fully enclosed brushless motor with fan cooling
Fuse: NOT built-in
Shaft seal: ceramic-on-carbon mechanical seal
Impeller material: seawater-resistant aluminum
Volute material: seawater-resistant aluminum
Pump housing material: seawater-resistant aluminum
Pump shaft material: stainless steel
Liquids: clean and slightly contaminated gas oil, petroleum, spindle oil, water and seawater (No seawater for FS-12D)
Voltage: 24 V DC
At 10 meters: 3,900 liters per hour
At 15 meters: 1,500 liters per hour
Connections: 1.1/4" hose connection and 1.1/4" female thread
Dimensions: lxwxh = 283 x 122 x 154 mm
Weight: 8.0 kg
Amperage: 16 A
Shaft power: 0.2 kW, 0.26 hp, 6200 rpm
| Brand | Koshin |
|---|---|
| Item number | 93.10.324 |
| Diameter | |
| Breaking strength | |
| Weight per 100 m | |
| IMPA code | |
| Suction lift | 5.0 m |
| Pressure pipe diameter | 1.1/4" |
| Suction pipe diameter | 1.1/4" |
| Pump type | Dry setup: self-priming |
| Medium | Gas oil |
| Particle size | 2 mm |
| Max. delivery head | 18.5 m |
| Voltage | 24 V |
| Supply voltage | DC |
| Protection class | IP68 |
| ATEX | No |
| Free flow (L/hr) | 6000 |
| Capacity at 5 meters (L/hr) | 4800 |
