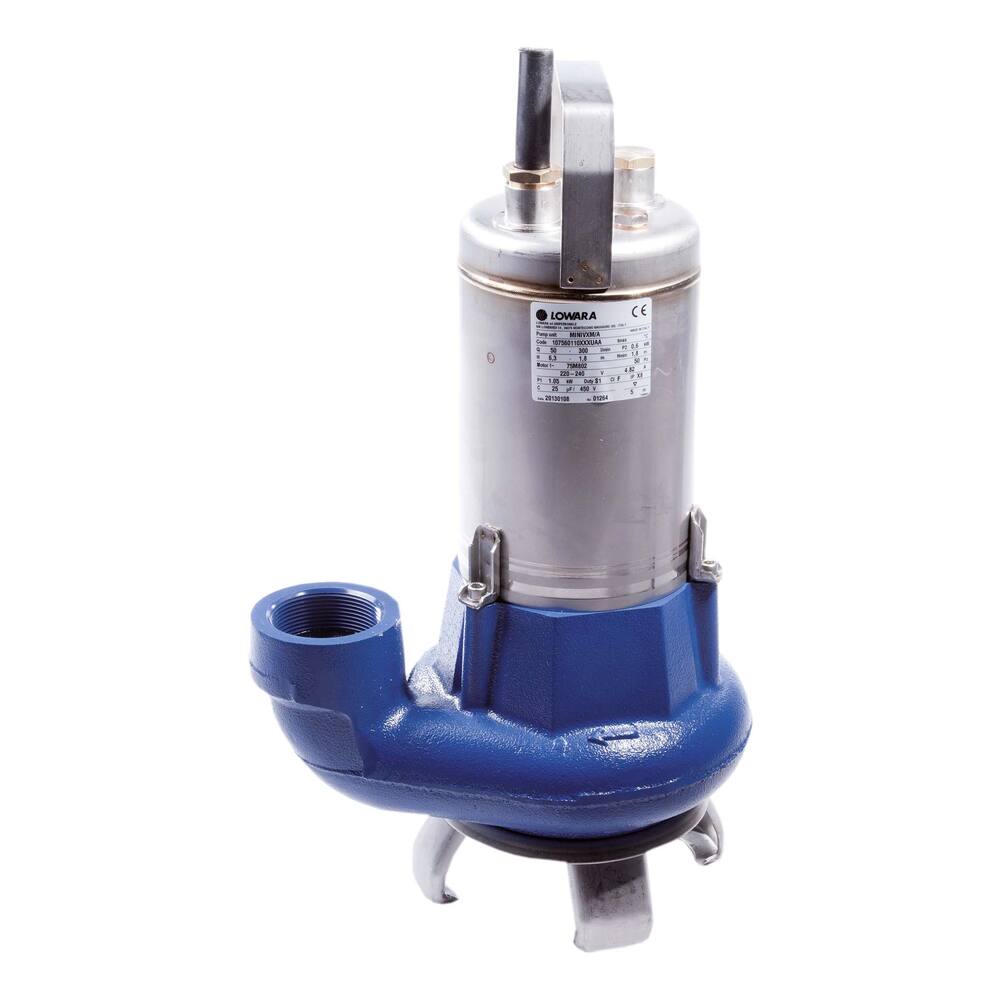

Lowara DL Minivortex 230V

Submersible pump for removing cargo residues from ships, transferring sewage, and emptying black water tanks.
The advantage of this pump is the vortex impeller, which reduces the risk of clogging or seizing.

Type: DL-VORTEX
Colour: blue and stainless steel
Pump type: fully submersible centrifugal pump
Impeller type: recessed impeller (vortex)
Motor type: oil-filled motor
Submersion depth: 5 metres
Fuse: built-in thermal protection at 230 volts; at 400 volts, a motor protection switch is installed in the cable
Shaft seal: ceramic-on-carbon mechanical seal
Impeller material: cast iron
Volute material: cast iron
Motor housing material: stainless steel
Pump casing material: stainless steel
Liquids: contaminated water with solid particles and high acidity
Maximum solids size: 60 mm
Connection: 2" female thread
Dimensions: diameter 278 mm, height 455 mm
Weight: 19 kg
Amperage: 5.0 A
Shaft power: 0.6 kW, 0.8 hp, 2850 rpm
Cable: 10 metres of H07RN-F neoprene and a cable entry gland
