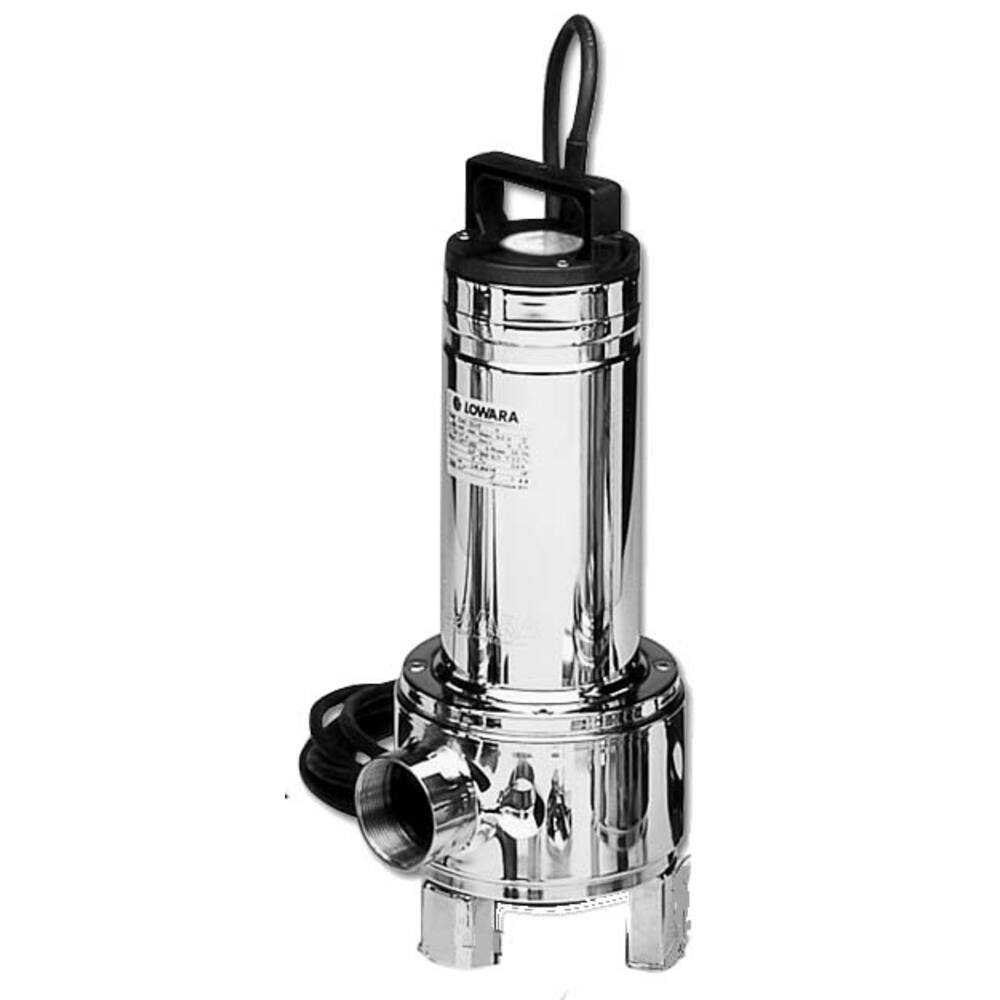

Lowara Domo 10VXSG / 10VXT

Stainless steel submersible pump for removing cargo residues from ships, pumping sewage, and emptying bilge tanks.
The advantage of this pump is the vortex impeller, which reduces the risk of clogging or seizing.

Type: DOMO
Color: Stainless steel
Pump type: fully submersible centrifugal pump
Impeller type: recessed impeller (vortex)
Motor type: dry motor
Submersion depth: 5 meters
Fuse: built-in thermal protection at 230 volts; at 400 volts, a motor protection circuit breaker in the cable is required
Shaft seal: drivelub seal system, oil chamber with 2 shaft seals, the lower one being a mechanical seal made of wear-resistant silicon carbide on silicon carbide and a lip seal on the motor side, all lubricated by the drivelub system
Impeller material: 304 stainless steel
Impeller housing material: 304 stainless steel
Motor housing material: 304 stainless steel
Pump casing material: 304 stainless steel
Liquids: contaminated water with solid particles and high acidity, with a max. temperature of 40°C when the pump is fully submerged
Maximum particle size: 50 mm
Impeller material: 304 stainless steel
Particle size: maximum 50 mm, no gravel
Connection: 2" female thread
Dimensions: diameter 198 mm, height 453 mm
Weight: 12.0 kg
Amperage: 230 V, 5.2 A
Shaft power: 0.8 kW, 1.1 hp, 2850 rpm
Cable: 10 meters of H07RN-F neoprene with a ground pin for 230 volts
