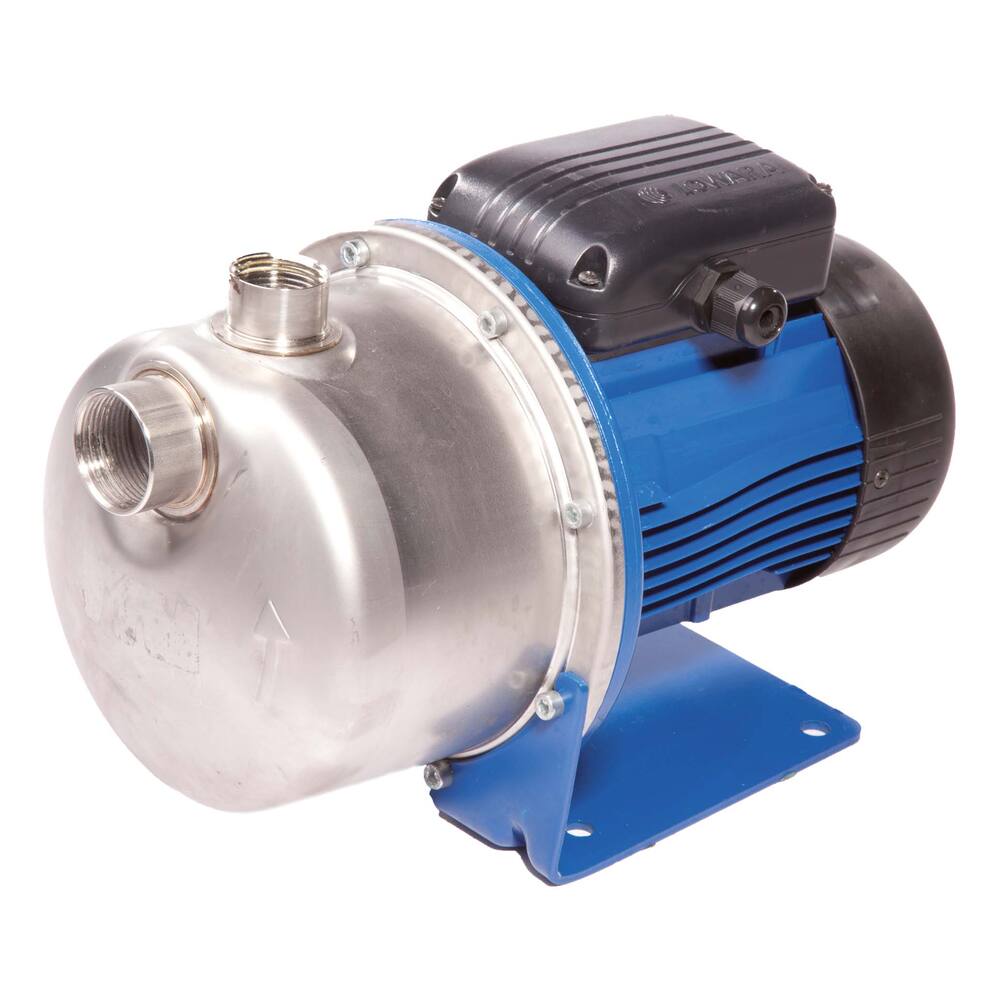

Lowara jet pump BGM-5/A 230V

Compact, all-stainless steel pump for a wide range of applications, such as garden irrigation and pressure boosting, as well as for the transport of mildly aggressive liquids in industry, hospitals and laboratories.

Type: JET-BGM
Colour: stainless steel
Pump type: self-priming centrifugal pump with jet system
Impeller type: closed impeller
Motor type: induction motor
Fuse: for 230 volts, built-in thermal protection
Shaft seal: ceramic-on-carbon mechanical seal
Impeller material: 304 stainless steel
Impeller chamber material: 304 stainless steel
Ejector material: thermoplastic
Pump housing material: 304 stainless steel
Pump shaft material: 304 stainless steel
Liquids: clean, low-viscosity liquids without solid particles, max. temperature 40°C
At 10 metres: 3,900 litres per hour
At 15 metres: 3,900 litres per hour
At 20 metres: 3,240 litres per hour
At 25 metres: 2,400 litres per hour
At 30 metres: 1,560 litres per hour
At 35 metres: 840 litres per hour
At 40 metres: 120 litres per hour
Pressure connection: 1" female thread
Suction connection: 1.1/4" female thread
Dimensions: L x W x H = 383 x 215 x 223 mm
Weight: 12 kg
Amperage: 4.0 A
Shaft power: 0.55 kW, 0.75 hp, 2800 rpm

Used with Lowara BGM-5 booster set (97.37.010 and 97.37.020).
