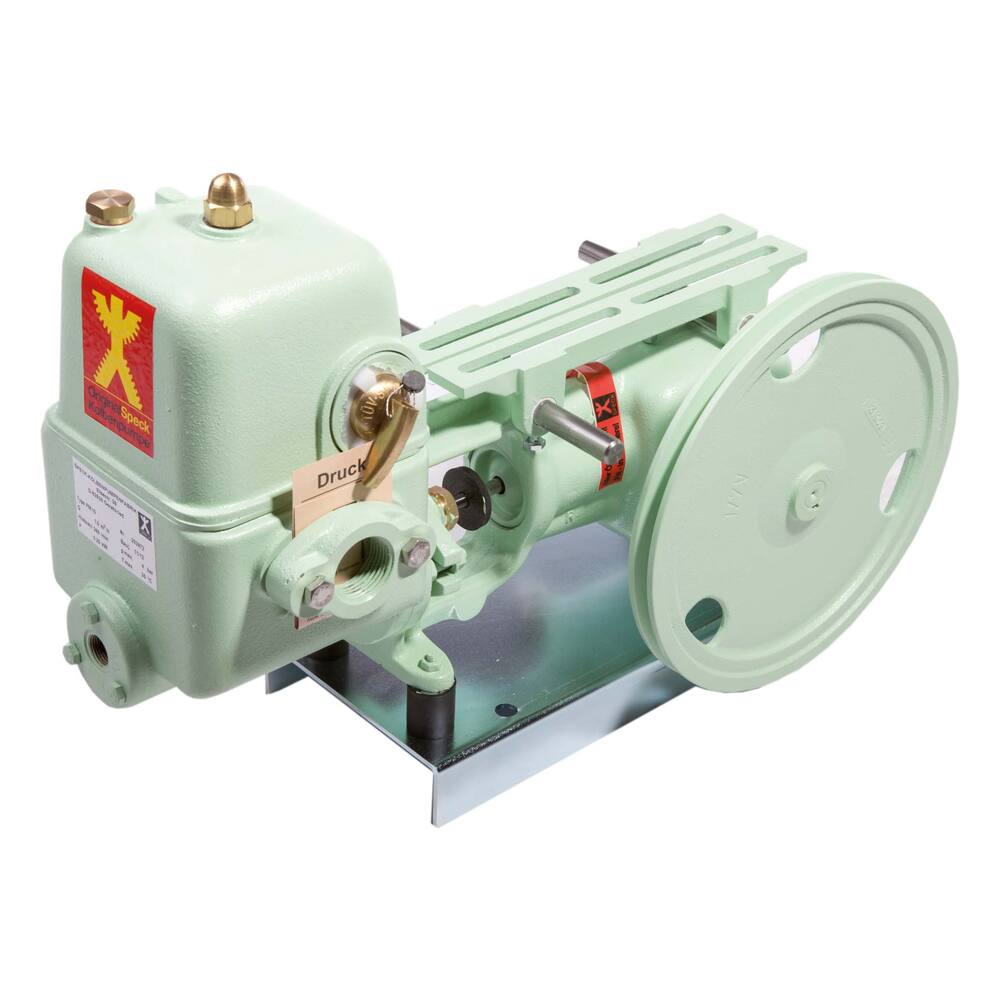

Speck plunger pump PM20

Professional plunger pump for water pressure systems in commercial shipping, pleasure craft, homes, farms and other businesses.
For years, the best-selling hydro-pneumatic plunger pump in inland shipping.

Type: PM (Pumpmeister)
Colour: light green
Pump type: self-priming plunger pump
Impeller type: plunger (piston)
Rotation: clockwise, viewed at the pulley
Shaft seal: stuffing box
Plunger material: Simrit
Cylinder liner material: brass
Pump housing material: cast iron
Pump impeller material: stainless steel
Liquids: clean water
Operating pressure: maximum 6 bar
Voltages: depending on the separate motor

Capacity: 2,000 litres per hour at 4.0 bar
Dimensions: L x W x H = 619 x 270 x 416 mm
Weight: 33 kg
Shaft power: 0.37 kW, 0.5 hp at 1,450 rpm

Must be installed by a certified installer.
