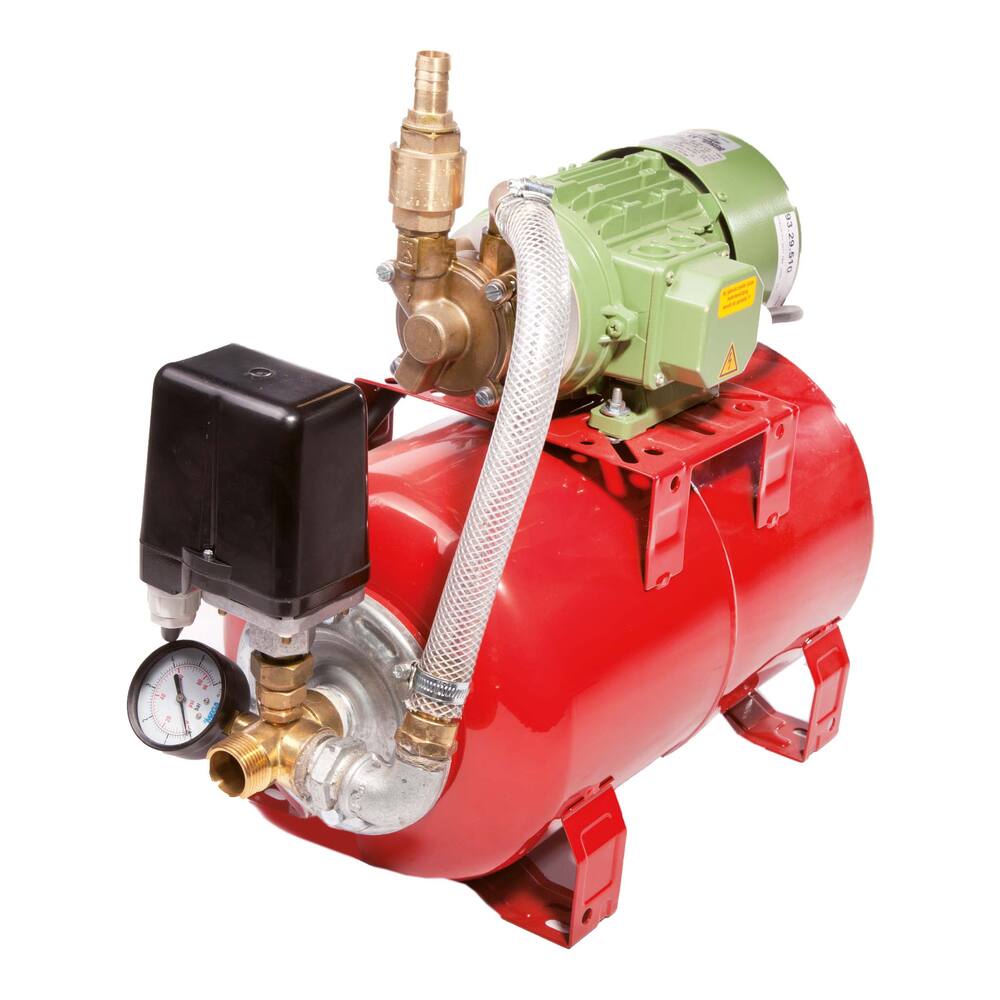

Speck PY2071-24DC hydrophore unit
- In stock
- Free pickup in Harlingen
Request a volume price or quote
For professional and pleasure craft.
Complete with pressure tank, non-return valve, pressure gauge, pressure switch and electric pump.
Type: PY
Colour: olive green with brass
Pump type: self-priming centrifugal pump
Impeller type: open peripheral impeller
Motor type: brushless motor
Shaft seal: ceramic-on-carbon mechanical seal
Impeller material: brass
Impeller housing material: brass
Pump housing material: brass
Pump shaft material: stainless steel 1.4122
Liquids: clean water
Capacity: 360 litres per hour at 2.5 bar
Pressure tank type: horizontal 20-litre diaphragm tank with approx. 8 litres of usable water capacity
Switch-on pressure: 1.0 bar
Switch-off pressure: 3.0 bar
Dimensions: l x w x h = 530 x 280 x 460 mm
Weight: 16 kg
Amperage: 24.4 A
Shaft power: 0.37 kW, 0.5 hp
Item number of the pump in this set: 93.29.510
| Brand | Speck |
|---|---|
| Item number | 97.29.010 |
| Diameter | |
| Breaking strength | |
| Weight per 100 m | |
| IMPA code | |
| Number of tap points | Geyser and 2 tap points |
| Suction lift | 8.0 m |
| Pressure pipe diameter | 3/4" |
| Suction pipe diameter | 1/2" |
| Pump type | Hydropneumatic |
| Medium | Water |
| Grain size | 2 mm |
| Max. delivery head | 30.0 m |
| Voltage | 24 V |
| Current | DC |
| Protection class | IP68 |
| ATEX | No |
| Free flow (L/hr) | 360 |
| Capacity at 5 meters (L/hr) | 360 |
| Item no. | Model | Breaking strength | Weight / 100 m | IMPA | EAN | Per metre | Price |
|---|---|---|---|---|---|---|---|
| 97.29.010 | 20 L steel tank | kN | kg | – | – | – | €2.330,20 |
| 97.29.030 | 20 L stainless steel tank | kN | kg | – | – | – | €2.643,80 |
Prices incl. VAT. Need large quantities? Request a quote.
