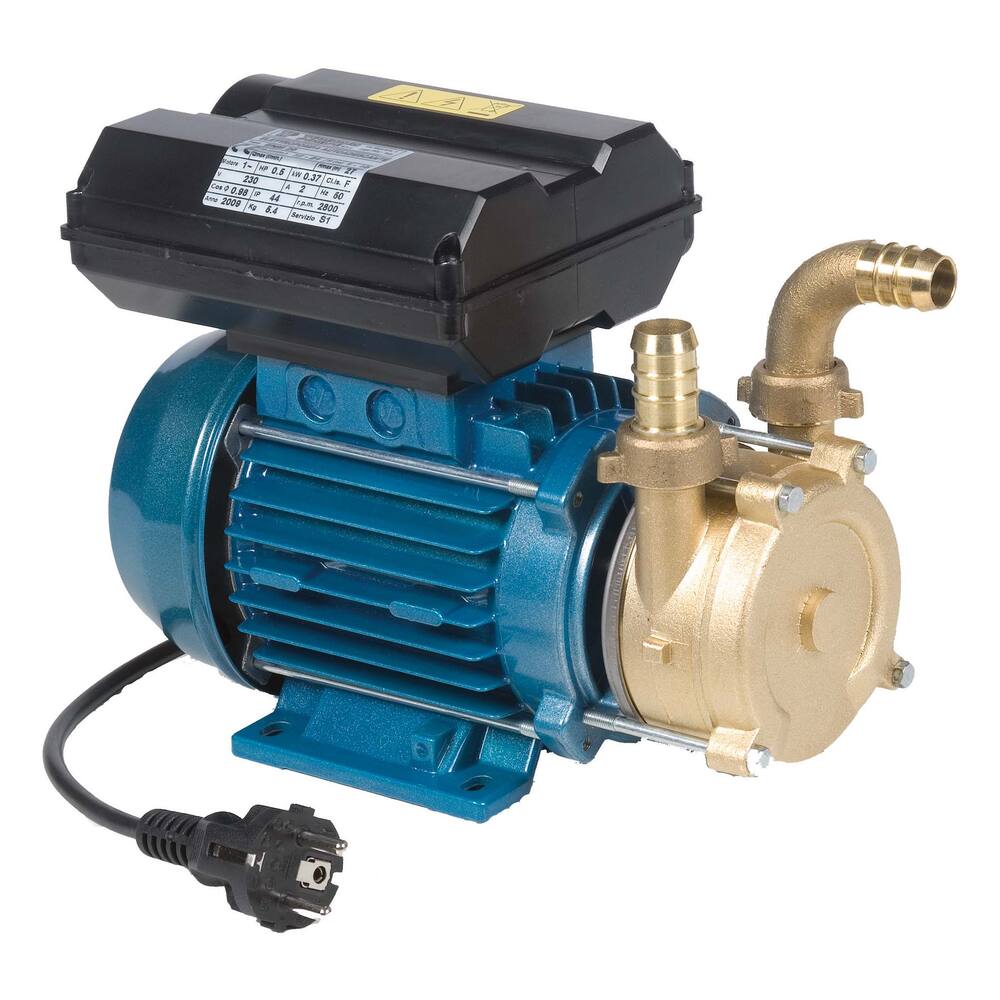

Tellarini ENM 40 / ENT 40

Reliable self-priming side channel pump for clean liquids, gas oil, water, seawater, wine, fruit juices, etc.

Type: ENM
Colour: blue with brass
Pump type: self-priming liquid ring pump, NOT a centrifugal pump and therefore MUST NOT be completely closed off
Impeller type: open star impeller
230-volt motor type: induction motor with reversing switch
Direction of rotation: 2 directions via reversing switch, exclusively at 230 volts (ENM 40)
Fuse: NOT built-in
Shaft seal: nitrile rubber lip seal with stainless steel spring, mechanical seal available and can also be fitted later
Impeller material: brass
Impeller housing material: brass
Pump housing material: brass
Pump shaft material: stainless steel AISI 316
Liquids: maximum continuous temperature 90°C water, gas oil and other clean liquids without abrasive components
At 10 metres: 4,200 litres per hour
At 15 metres: 2,220 litres per hour
Connections: 1.1/2" male thread and 1.1/2" hose connection
Dimensions: l x w x h = 353 x 166 x 232 mm
Weight: 14.7 kg
Amperage: 230 V, 5.8 A
Shaft power: 0.9 kW, 1.2 hp, 1400 rpm
