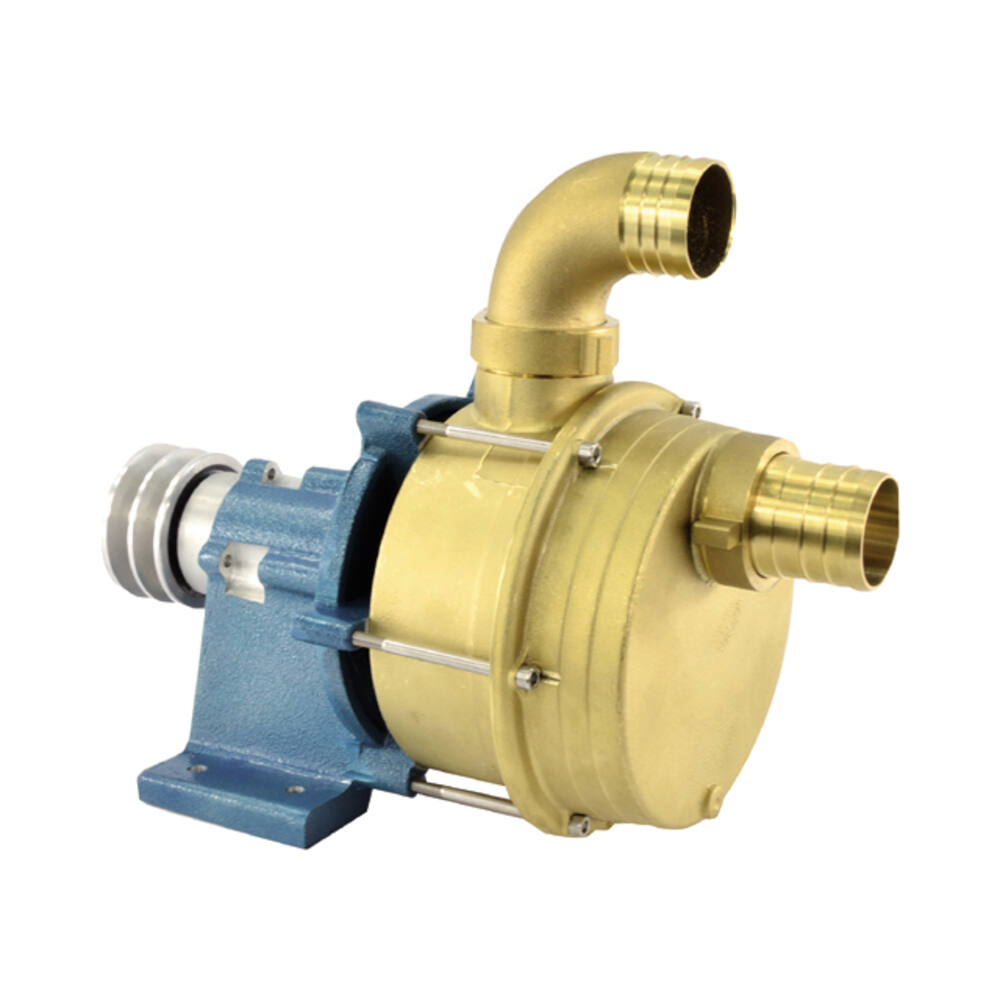

Tellarini I-50 brass, bare shaft

Reliable self-priming side channel impeller pump for clean liquids, gas oil, water, wine, fruit juices, etc. with V-belt pulley for drive by diesel, petrol or electric motor.
Can be used as cooling water pump or fuel transfer pump in the maritime or industrial sector.

Type: I-50
Colour: brass
Pump type: self-priming liquid ring pump, NOT a centrifugal pump and therefore MUST NOT be completely sealed
Impeller type: open star impeller
Direction of rotation: can be used in both left-hand and right-hand rotation
Shaft seal: nitrile rubber lip seal with stainless steel spring, mechanical seal available and can be fitted later
Impeller material: brass
Impeller housing material: brass
Pump housing material: brass
Pump shaft material: stainless steel AISI 316
Liquids: maximum continuous temperature 90°C water, gas oil and other clean liquids without abrasive components

Connections: 2" external thread and 2" hose connection
Dimensions: l x w x h = 325 x 200 x 219 mm
Weight: 9.4 kg
Shaft power: 1.6 hp up to 5.2 hp
Speed range: 1400 to 1900 rpm
V-belt pulley: 2A72
