TMC

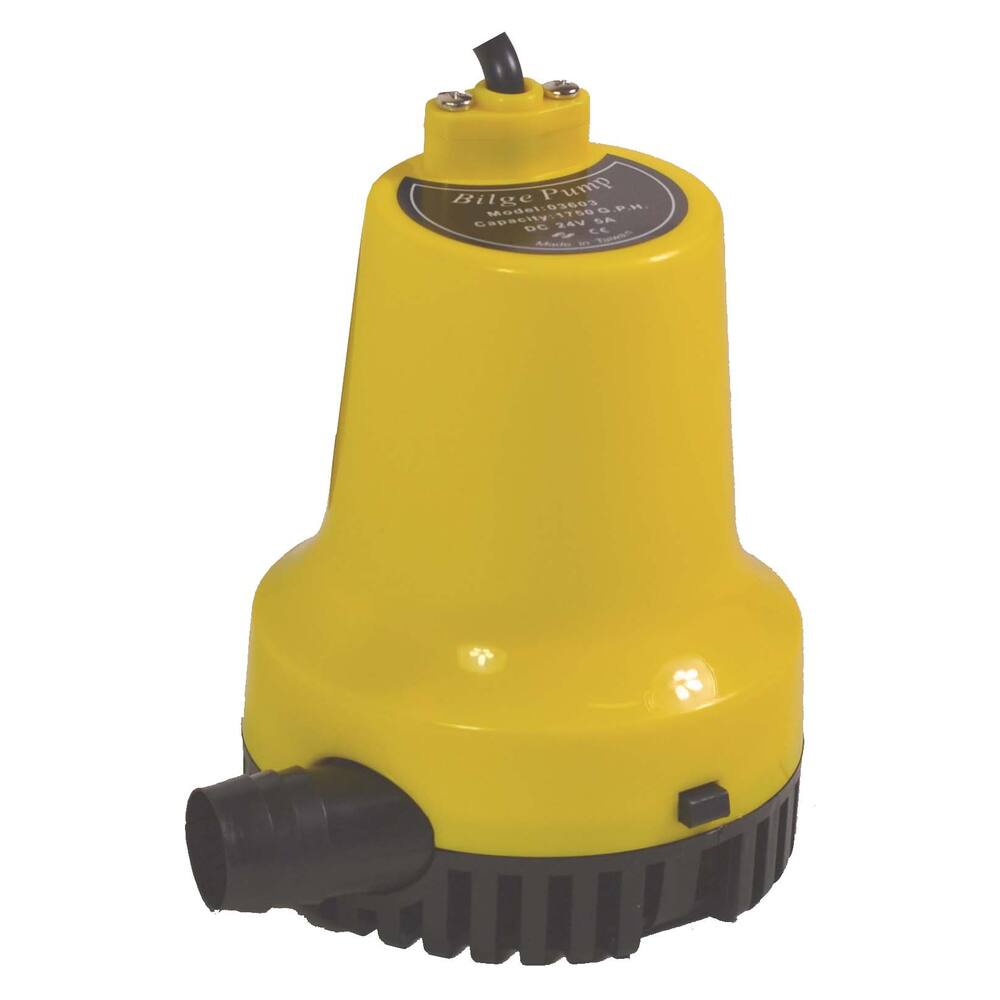

TMC-03603

Item no. 91.05.312

In stock
Free pickup in Harlingen

Voltage

€156,50

Quantity

Total

Delivery

Pick up in HarlingenFree

Parcel via DPD (up to 30 kg)€ 8,95

Pallet via Koopman (over 30 kg)€ 75,00

Request a volume price or quote

Reliable bilge pump for inland waterways and marine use.
Oil-resistant.

Type: 03603
Colour: yellow/black
Pump type: fully submersible centrifugal pump
Impeller type: open impeller
Motor type: brushed motor
Fuse: NOT built-in
Shaft seal: ceramic-on-carbon mechanical seal with lip seal
Impeller material: plastic
Volute material: plastic
Motor housing material: plastic
Pump casing material: stainless steel
Liquids: slightly contaminated water and seawater
Pumping out to: 10 mm
Connection: 1" hose connection
Dimensions: diameter 121/145 mm, height 165 mm
Weight: 0.9 kg
Amperage: 12 V, 10.0 A
Cable: 1 metre without connector

Brand	TMC
Item number	91.05.312
Diameter
Breaking strength
Weight per 100 m
IMPA code
Pipe diameter press	1"
Pump type	Submersible pump
Medium	Water
Particle size	2 mm
Max. head height	4.1 m
Voltage	DC
ATEX	No
Float switch	No
Free discharge (L/hr)	6600
Capacity at 5 meters (L/hr)	0
