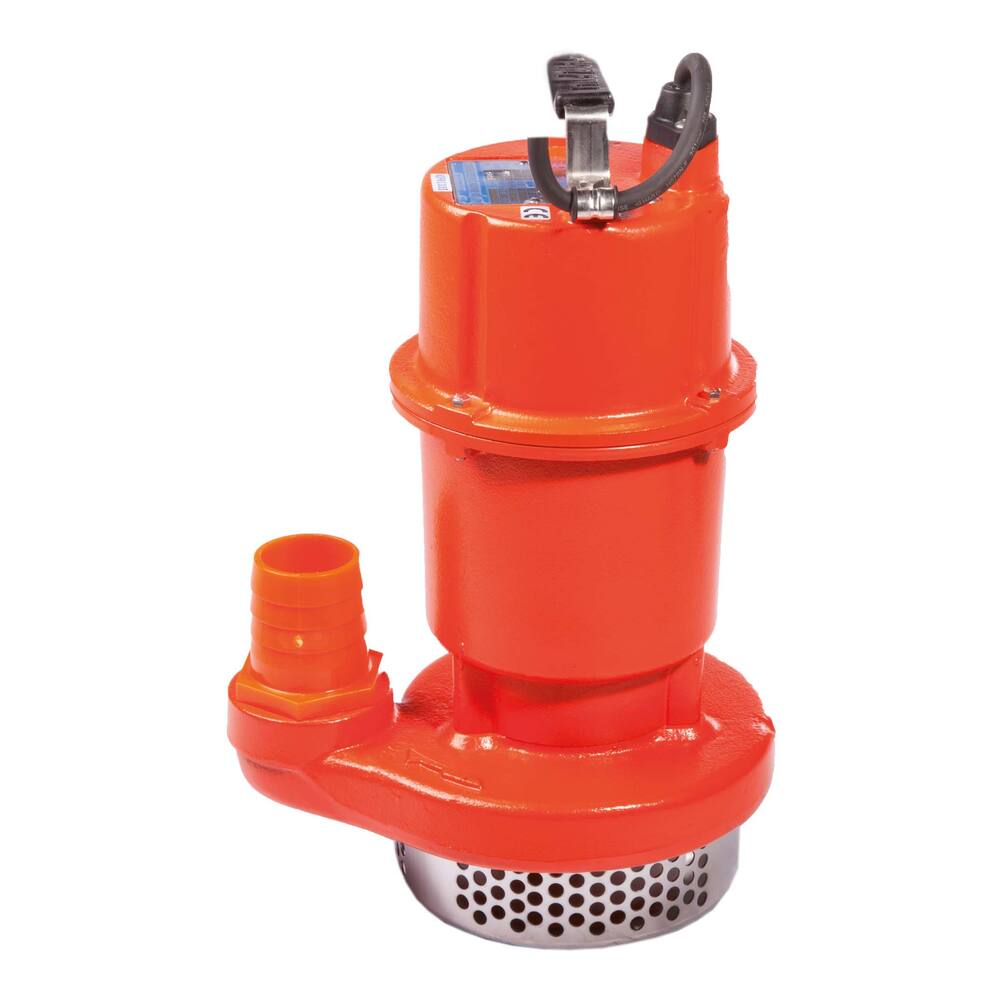

Ulex SC-112A (Showfou SC-112AE) 20m3 230V
- In stock
- Free pickup in Harlingen
Request a volume price or quote
Affordable submersible pump.
Very suitable for construction and industry.
Type: SC
Color: orange
Pump type: fully submersible centrifugal pump
Impeller type: open impeller
Motor type: dry motor
Fuse: built-in thermal protection
Shaft seal: double mechanical seal of carbon on ceramic separated by oil chamber and lip seal of NBR rubber
Submersion depth: 5 meters maximum
Impeller material: cast iron
Impeller housing material: cast iron
Motor housing material: cast iron
Pump shaft material: stainless steel 304
Liquids: contaminated water
At 10 meters: 11,400 liters per hour
At 15 meters: 4,800 liters per hour
Pumps away up to: 40 mm
Connection: 2" female thread and 2" hose barb
Dimensions: diameter 255 mm, height 430 mm
Weight: 26 kg
Amperage: 6.4 A
Shaft power: 0.75 kW, 1.0 hp, 3000 rpm
Cable: 10 meters neoprene H07RN-F with edge protector
| Brand | Showfou |
|---|---|
| Item number | 91.20.912 |
| Diameter | |
| Breaking strength | |
| Weight per 100 m | |
| IMPA code | |
| Pipe diameter press | 2" |
| Pump type | Submersible pump |
| Medium | Water with sand |
| Grain size | 7 mm |
| Max. delivery head | 18.0 m |
| Voltage | 230 V |
| Supply | Alternating current |
| Frequency | 50 Hz |
| Protection class | IP68 |
| ATEX | No |
| Float switch | No |
| Free delivery (L/hr) | 20400 |
| Capacity at 5 meters (L/hr) | 16200 |
