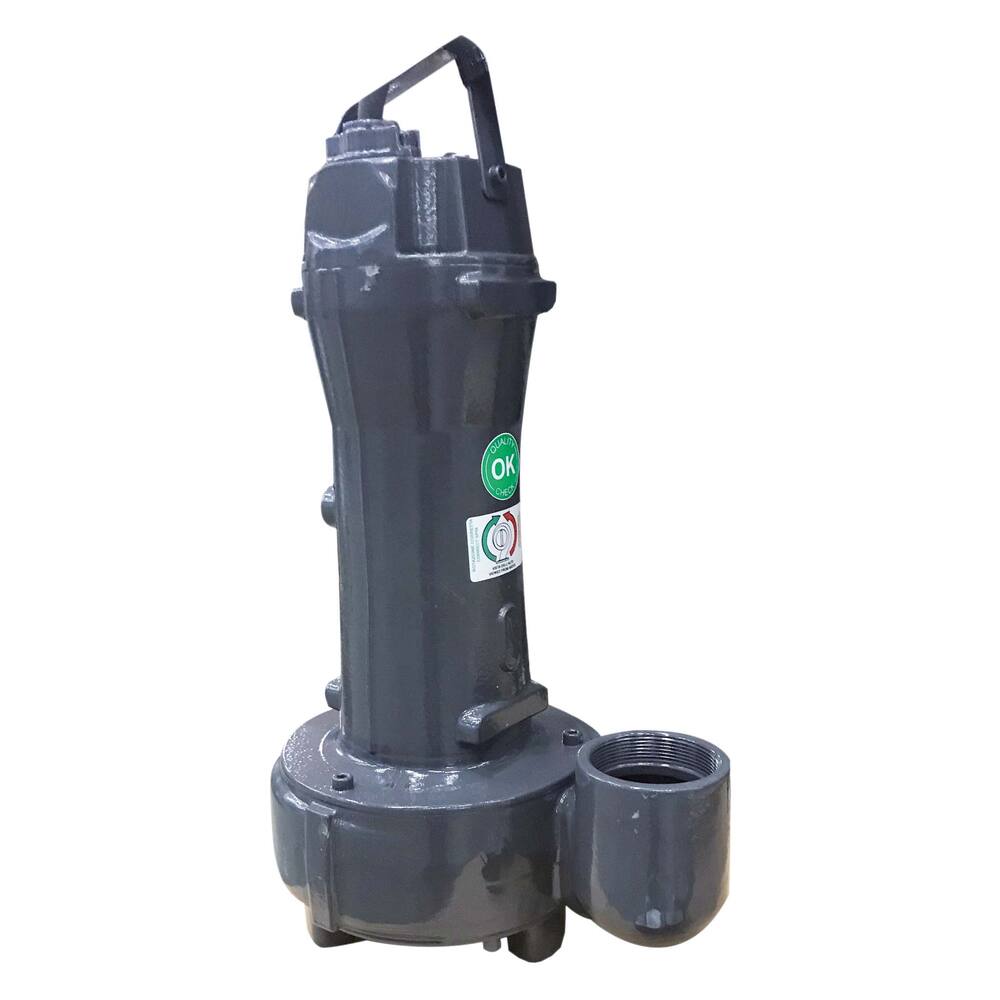

Zenit ATEX DRG 300/2/G65V 400V

Submersible pump to be used for pumping out lens water on ADN vessels.

Type: DRG
Colour: grey
Pump type: fully submersible centrifugal pump
Impeller type: open impeller or single-channel impeller
Motor type: dry motor
Submersion depth: 5 metres
Fuse: at 400 volts, a motor protection circuit breaker in the cable is required
Shaft seal: drivelube seal system, oil chamber with 2 shaft seals, both wear-resistant silicon carbide on silicon carbide and additional lip seal at the motor bearing
Impeller material: cast iron EN-GJL 250
Volute material: cast iron EN-GJL 250
Motor housing material: cast iron EN-GJL 250
Pump shaft material: stainless steel AISI 431
Liquids: contaminated water with solid particles, maximum temperature +40°C
Protection class: IP68
Voltages: 400 V mains electricity
ATEX: II 2G
ATEX: Ex db IIB T4 Gb
ATEX: Ex h IIB T4 Gb

At 10 metres: 48,000 litres per hour
At 15 metres: 22,000 litres per hour
At 18 metres: 6,000 litres per hour
Pumping capacity: up to 70 mm maximum
Connection: 2.1/2" female thread
Dimensions: diameter 327 mm (incl. elbow), height 605 mm
Weight: 42.2 kg
Amperage: 4.6 A
Shaft power: 2.2 kW, 2.93 hp, 2900 rpm
Cable: 10 metres neoprene H07RN-F without connector
