Alpha Pompe

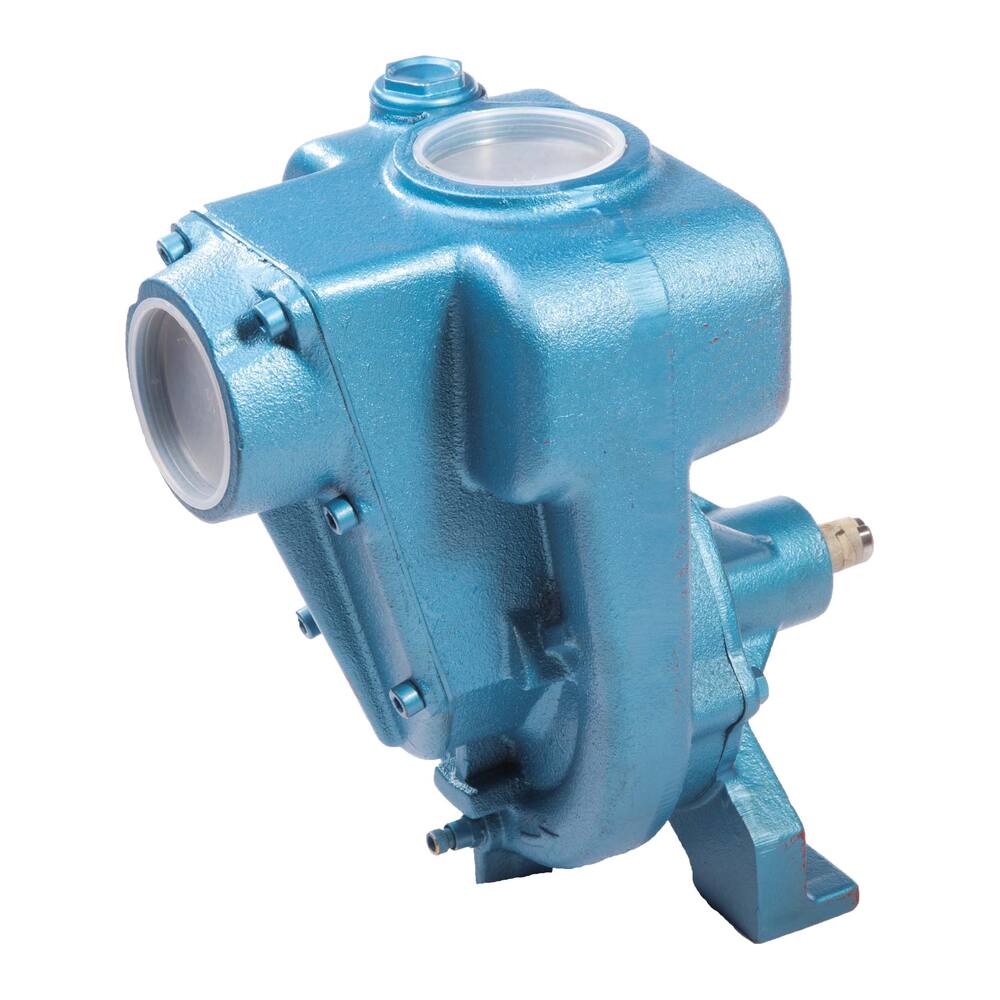

Alpha 02RA-2" right-hand

Item no. 95.35.020

In stock
Free pickup in Harlingen

€472,80

Quantity

Total

Delivery

Pick up in HarlingenFree

Parcel via DPD (up to 30 kg)€ 8,95

Pallet via Koopman (over 30 kg)€ 75,00

Request a volume price or quote

In shipping as a bilge and deck wash pump, for irrigation, drainage, industry, construction and agriculture

Type: 02RA
Colour: blue
Pump type: self-priming centrifugal pump
Impeller type: open impeller
Rotation direction: clockwise
Shaft seal: ceramic-on-carbon mechanical seal
Impeller material: cast iron
Pump casing material: cast iron
Pump shaft material: stainless steel
Liquids: contaminated water, seawater, gas oil, etc. maximum temperature 90°C

At 10 metres: 22,500 litres per hour
At 15 metres: 13,500 litres per hour
Connections: 2" female thread
Dimensions: lxwxh = 294 x 193 x 321 mm
Weight: 17.0 kg
Shaft diameter: 20 mm
Shaft power: 1.5 kW, 2.0 hp at 2800 rpm
Speed range: 2800 to 3600 rpm

Brand	Alpha Pompe
Item number	95.35.020
Diameter
Breaking strength
Weight per 100 m
IMPA code
Suction lift	7.0 m
Pressure pipe diameter	2"
Suction pipe diameter	2"
Model	Right-hand rotating
Pump type	Dry installation: self-priming
Medium	Water
Particle size	14 mm
Max. delivery head	17.0 m
Free discharge (L/hr)	25500
Capacity at 5 meters (L/hr)	25000
