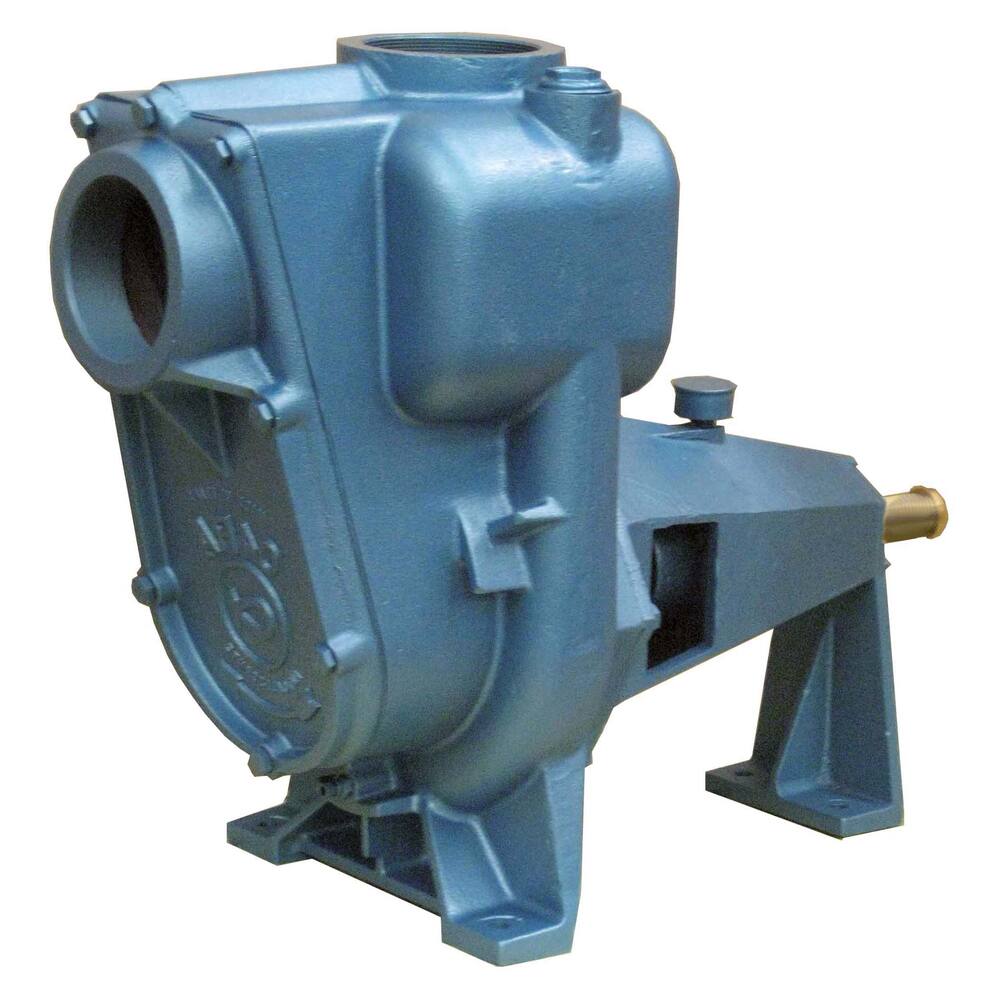

Alpha 04RA-4" right-hand

In shipping as a bilge and deck wash pump, for irrigation, drainage, industry, construction and agriculture

Type: 04RA
Colour: blue
Pump type: self-priming centrifugal pump
Impeller type: open impeller
Rotation direction: clockwise
Shaft seal: ceramic-on-carbon mechanical seal
Impeller material: cast iron
Pump casing material: cast iron
Pump shaft material: stainless steel
Liquids: contaminated water, seawater, gas oil, etc. maximum temperature 90°C

At 10 metres: 170,000 litres per hour
At 15 metres: 160,000 litres per hour
At 20 metres: 142,000 litres per hour
At 25 metres: 100,000 litres per hour
At 30 metres: 60,000 litres per hour
Connections: 4" female thread
Dimensions: l x w x h = 715 x 313 x 558 mm
Weight: 92.0 kg
Shaft diameter: 30 mm
Shaft power: 12.75 kW, 17 hp at 2800 rpm
Speed range: 2400 to 3200 rpm
