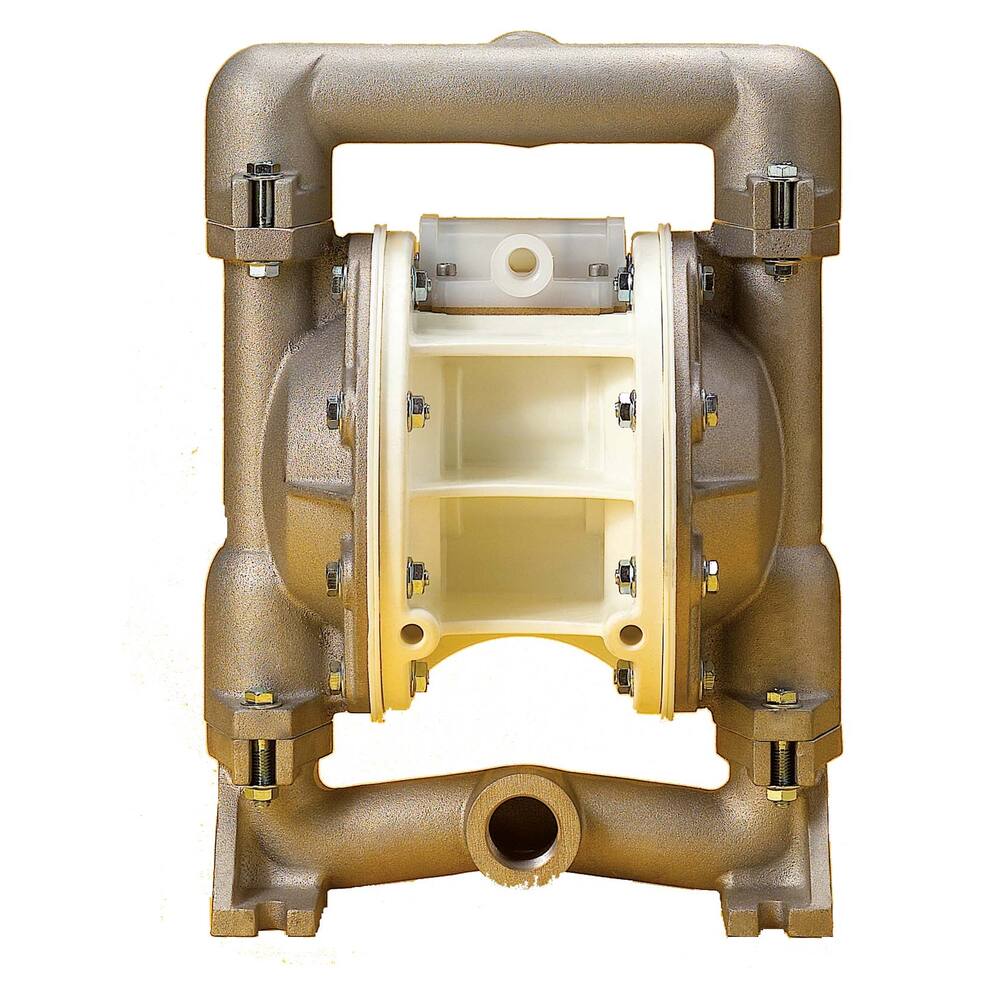

Air diaphragm pump 1.0

Can be run dry without limitation and is self-priming, also highly suitable for viscous liquids such as lubricating oil.
Dry pumps for construction pits, as well as the food and chemical industries.
Can also be used as a submersible pump.
Also available in an ATEX version, extremely suitable for use on tankers or where there is a risk of explosion

Air pressure: maximum 7 bar!
Pump type: self-priming diaphragm pump
Motor type: pneumatic piston motor
Shaft seal: N/A
Diaphragm material: Buna +
Ball material: Buna +
Valve material: Buna +
Seat material: Buna +
Pump chamber material: aluminium ++
Pump housing material: aluminium ++
Pump shaft material: N/A
+ also available in: NBR, neoprene, EPDM, Viton
++ also available in: cast iron, stainless steel 316
Liquids BUNA: slightly contaminated liquids such as kerosene, gas oil and lubricating oils.
Non-ATEX

Attention: no warranty without the use of an air filter and water separator
Viscosity: has a very large effect on capacity
Capacities: measured with water (Teflon 20% less CAPACITY)
At 10 metres: 10,200 litres per hour
At 20 metres: 9,300 litres per hour
At 30 metres: 8,400 litres per hour
At 40 metres: 7,200 litres per hour
At 50 metres: 6,400 litres per hour
At 60 metres: 5,200 litres per hour
Buna suction lift: 9.4 metres, DRY 4.6 metres
Air supply: 3/8" female thread
Air consumption: approx. 25% more than the capacity multiplied by the pressure
Dimensions: w x d x h = approx. 273 x 231 x 369 mm
Weight: 12.2 kg
