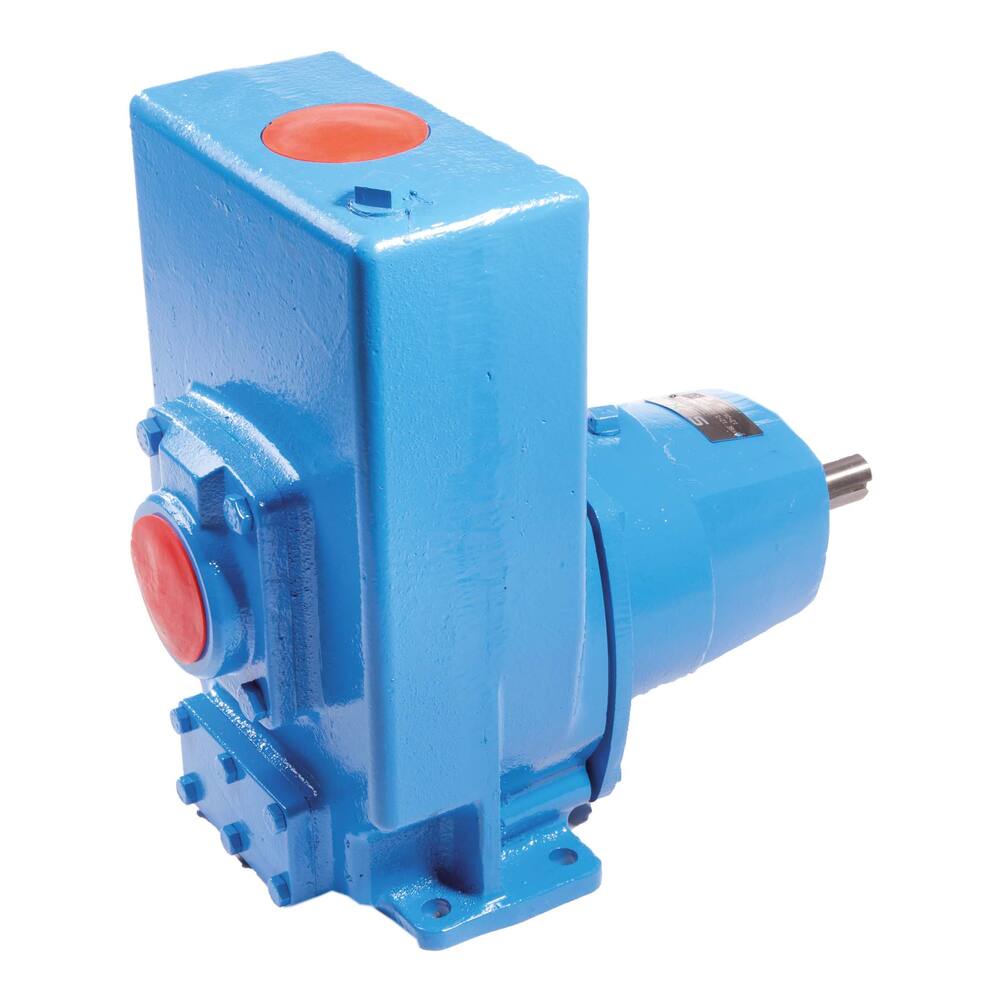

Stork KGE 16-6 - G1 - A

Bilge and deck wash pump widely used in shipping
Also highly suitable as a general service pump for industry, or as an irrigation pump in agriculture.

Type: KGE
Colour: blue
Pump type: self-priming centrifugal pump
Impeller type: open impeller
Rotation direction: clockwise
Shaft seal: ceramic-on-carbon mechanical seal
Impeller material: cast iron or bronze+
Material: bronze for 29Nb 15
Pump casing material: cast iron or bronze+
Pump shaft material: stainless steel
+ Available on order, as well as fully NI-resistant
Liquids: contaminated liquids, such as water, seawater, diesel oil, gas oil, fuel oil, etc. (maximum temperature +95°C)

At 10 metres: 58,000 litres per hour
At 15 metres: 58,000 litres per hour
At 20 metres: 50,000 litres per hour
At 25 metres: 40,000 litres per hour
At 30 metres: 30,000 litres per hour
At 35 metres: 17,000 litres per hour
Connections: 2.1/2" female thread
Dimensions: l x w x h = 415 x 247 x 380 mm
Weight: 40 kg
Shaft diameter: 24 mm
Shaft power: 5.5 kW, 7.3 hp at 2900 rpm
Speed range: 2800 to 3000 rpm
