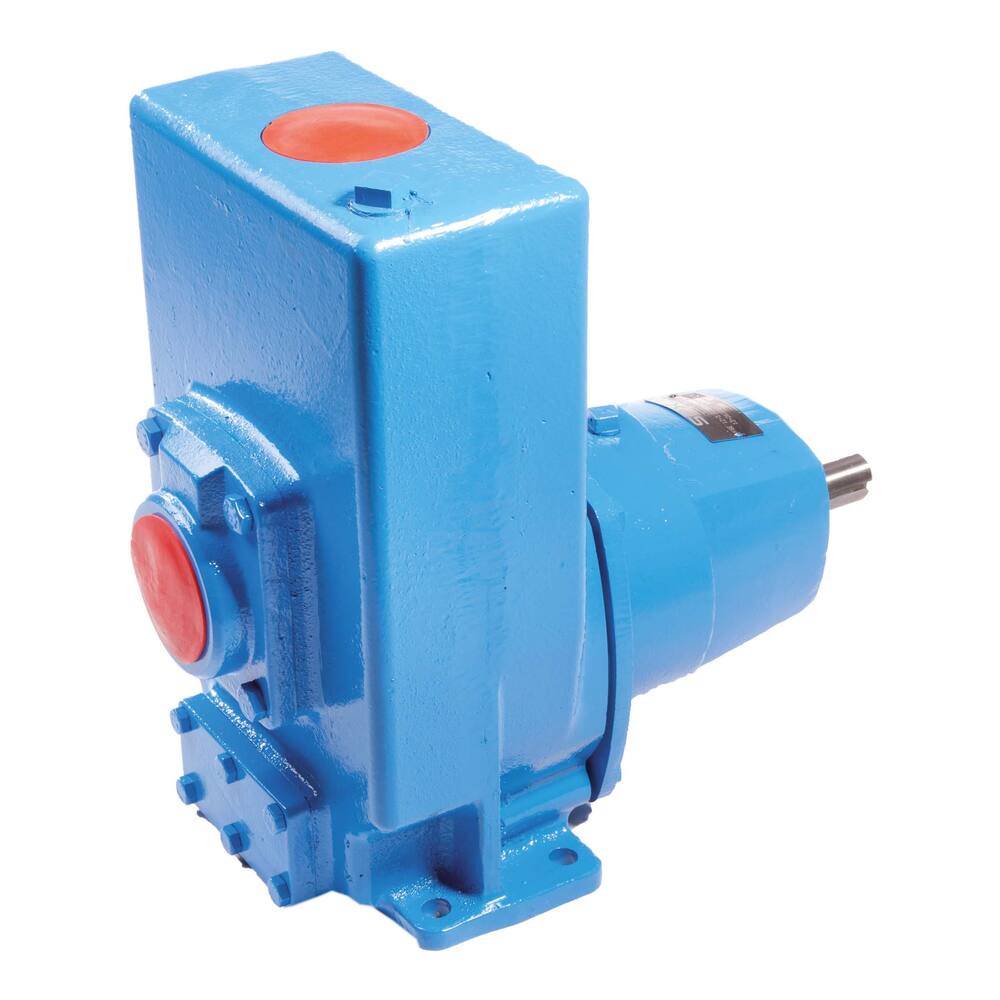

Stork KGE 18-4 right-hand rotating

Bilge and deck wash pump widely used in shipping
Also highly suitable as a general service pump for industry, or as an irrigation pump in agriculture.

Type: KGE
Colour: blue
Pump type: self-priming centrifugal pump
Impeller type: closed impeller
Rotation direction: clockwise
Shaft seal: ceramic-on-carbon mechanical seal
Impeller material: cast iron or bronze+
Material: bronze for 29Nb 15
Pump casing material: cast iron or bronze+
Pump shaft material: stainless steel
+ Available on order, as well as fully NI-resistant
Liquids: contaminated liquids, such as water, seawater, diesel oil, gas oil, fuel oil, etc. (maximum temperature +95°C)

At 10 metres: 18,000 litres per hour
At 15 metres: 18,000 litres per hour
At 20 metres: 18,000 litres per hour
At 25 metres: 15,500 litres per hour
At 30 metres: 12,500 litres per hour
At 35 metres: 9,000 litres per hour
At 40 metres: 3,500 litres per hour
Connections: 1.1/2" female thread
Dimensions: l x w x h = 490 x 265 x 370 mm
Weight: 65 kg
Shaft diameter: 24 mm
Shaft power: 4.0 kW, 5.5 hp at 2900 rpm
Speed range: 2800 to 3000 rpm
